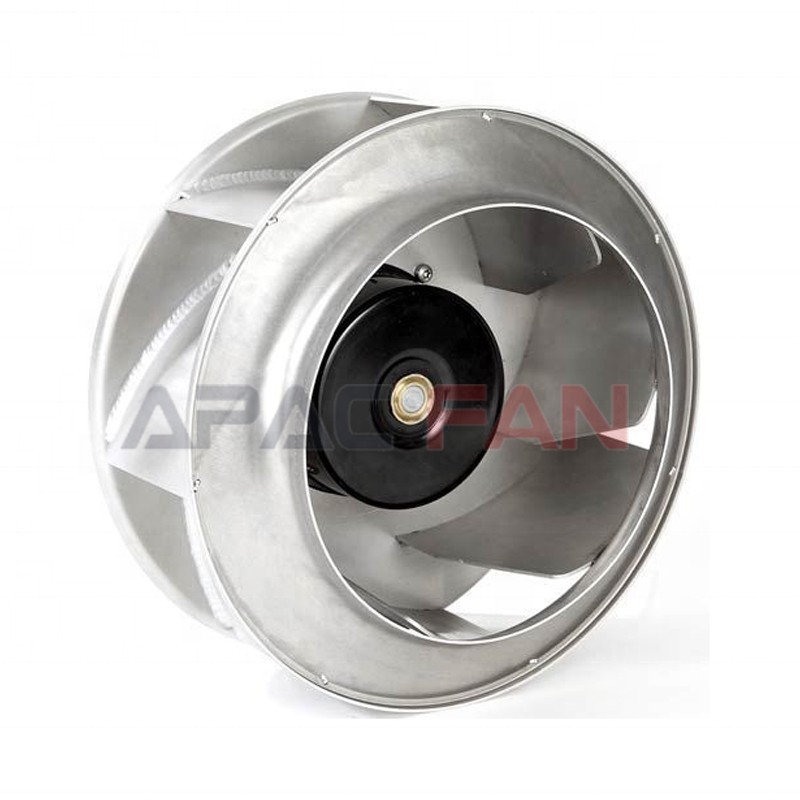

GTB056PUT35R N1
Brand：
DELTA
Category：
Centrifugal Fan
Description：
Benefits of Delta EC Fans:
· Optional inlet nozzle and mounting bracket
· Variable input range
· APFC, PPFC
· 0-10V PWM speed control
· RS485, Modbus
· UL/cUL
· Optional inlet nozzle and mounting bracket
· Variable input range
· APFC, PPFC
· 0-10V PWM speed control
· RS485, Modbus
· UL/cUL
Nominal data
Brand：
DELTA
Part No.：
GTB056PUT35R N1
Fan Type：
Centrifugal Fan
Rated Voltage(V)：
3~380-480
Size(mm)：
560
Max.Air Flow(m³/h)：
13952
Max.Pressure(Pa)：
1009
Input Power(W)：
3100
Speed(rpm)：
1550
Noise(db)：
85.5
Description

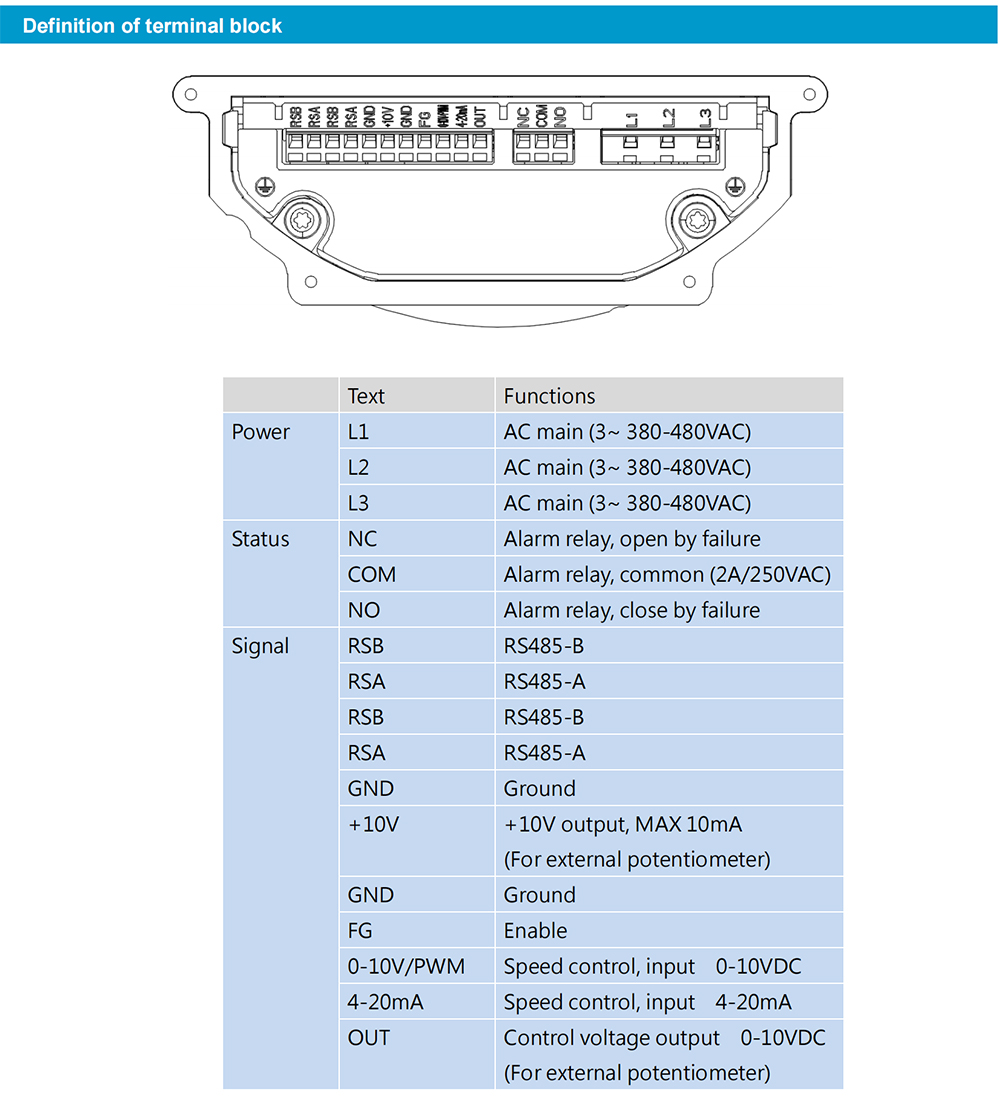

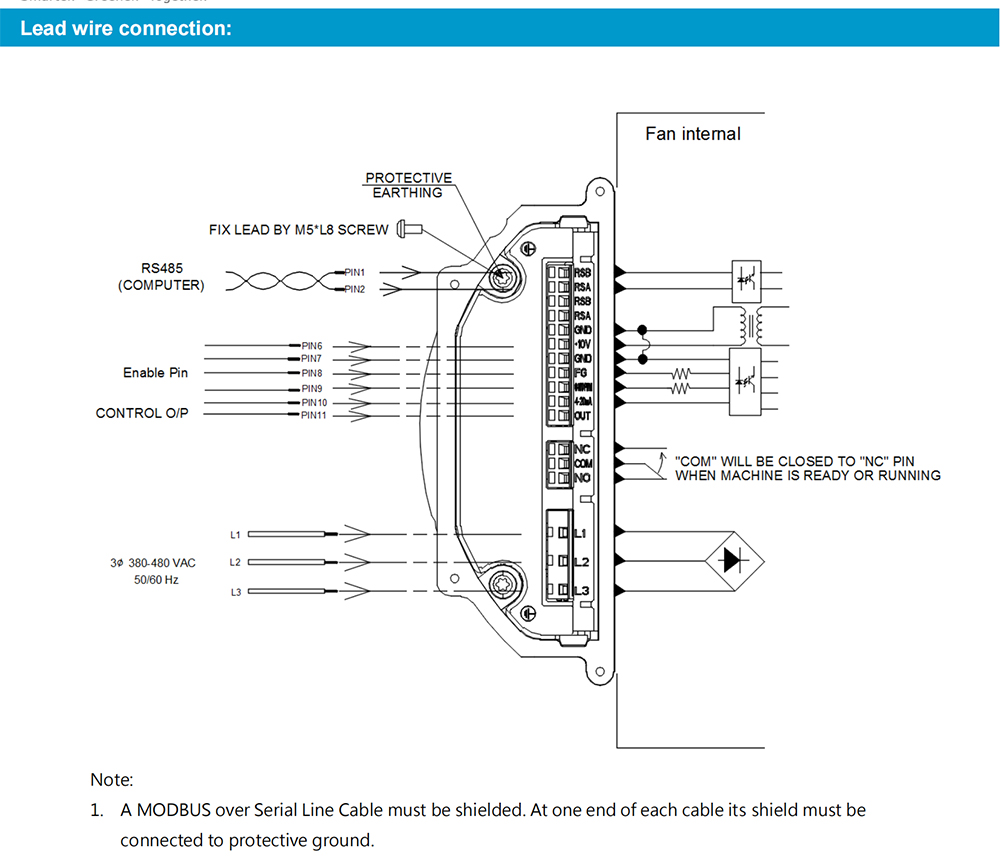

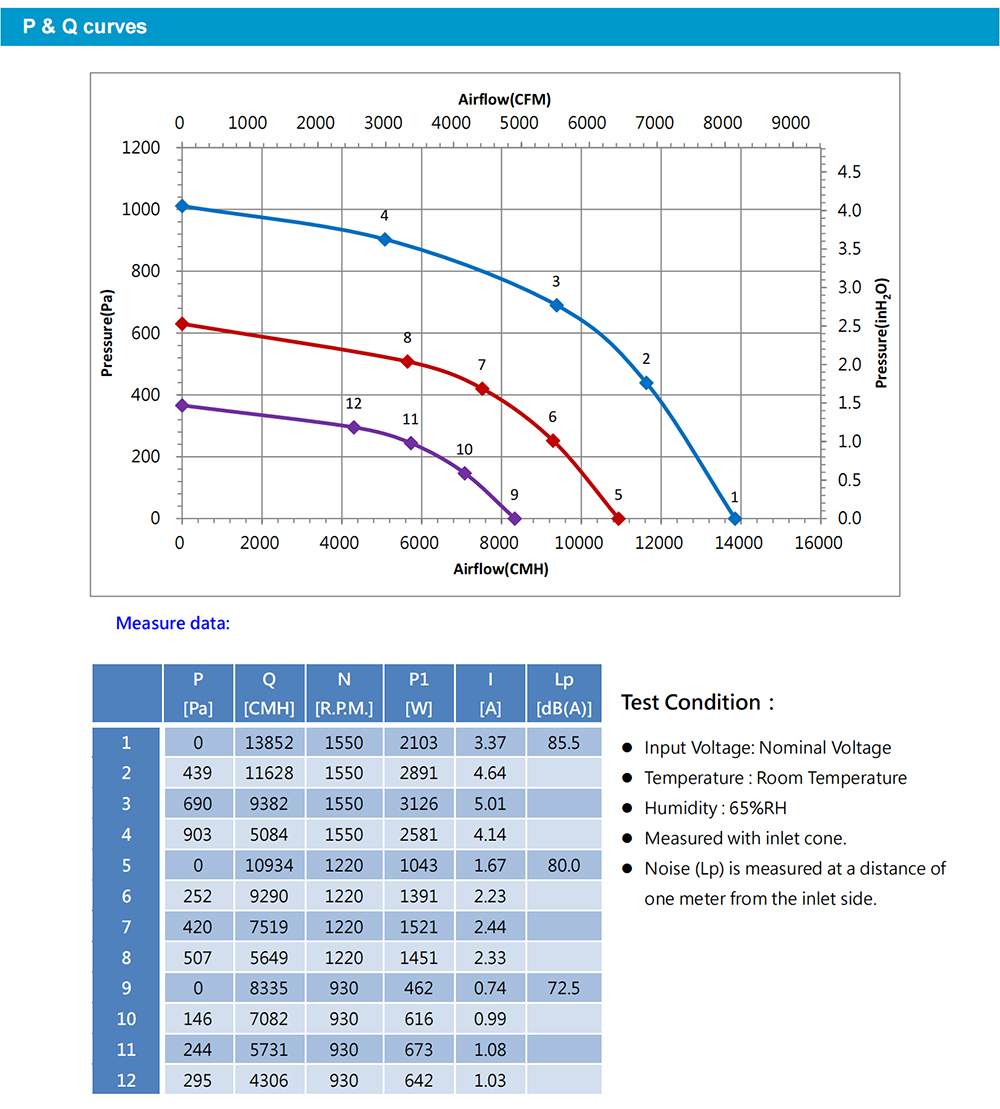

GTB056PUT35RN1 DELTA Specification drawing：
